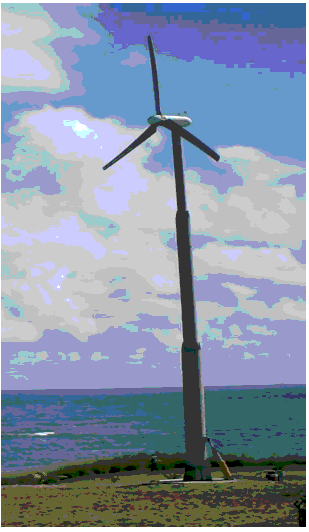

ReDriven Wind Energy Systems


 www.redriven.net

24 Bath Road, Suite A • Iroquois, Ontario • Canada, K0E 1K0 Tel: +1.866.330.0007 • Fax: +1.613.652.1903

http://redriven.ca/pop/Controller%20brochure.pdf

http://redriven.ca/pop/pamphlet%20final%20proof%20jan%2023.pdf

http://redriven.ca/pop/eng-Users%20Manual%2011-24-2008..pdf

http://redriven.ca/pop/PowerPoint/

Prices and output estimates (12mph average wind speed in Maryland, may vary with location).

Prices subject to change. Final price subject to PWE site visit prior to ratification of contract.

Model                            Estimated output                            Price          Tax Credit        MD  State              Final cost                20 year estimated

                                                   (12 mph average)                        (turnkey)       (Federal)         Grant                         in MD.                   fixed cost  per unit

_______________________________________________________________________________________________________

ReDriven 5kw          950 kw/hr/mo.                    58,000        17,400         14,420             26,180          11.4 cents/kw/hr

 (60’ tower)

ReDriven 10kw      1,900 kw/hr/mo.                  79,000         23,700         20,000            35,300            7.7 cents/kw/hr

  (80’ tower)

ReDriven 20kw    3,800 kw/hr/mo.                   130,000        39,000         20,000            71,000            7.8 cents/kw/hr

  (80’ tower)

ReDriven 50kw    10,800 kw/hr/mo.                 290,000       87,000          20,000          183,000            7.1 cents/kw/hr

(120’ tower)

Prices as of 10/2010

Model                          FD3.6 2Kw           FD6.4 5Kw                         FD8.0 10Kw                FD 10.0 20 Kw

Rated Power (W)

2000

5000

10000

20000

Rated voltage (V)

120

240

300

500

Rotor Diameter (M)

3.2

6.4

8.0

12.0

Cut in speed (m/s)

3

2

2

2

Rated speed (m/s)

12

12

12

12

Cut out speed (m/s)

16

18

18

18

Survival speed (m/s)

35

40

40

40

Rotor speed (rpm)

400

240

200

100

Blade material

Fiberglass

Fiberglass

Fiberglass

Fiberglass

Generator

Perm Magnet

Perm Magnet

Perm Magnet

Perm Magnet

Yaw

Passive furl

Active DC motor

Active DC motor

Active DC motor

Brake

Dynamic

Dynamic/Yaw

Dynamic/Yaw

Dynamic/Yaw

_________________________________________________

Turbine:

  • 3 Phase permanent magnet alternator.
  • Produces a 3phase wild AC voltage
  • Frequency: 0-40 Hz
  • Voltage: 2KW 0-120VAC, 5KW 0- 250VAC, 10KW 0-320VAC, 20KW 0-520VAC
  • Nacelle: Cast steel.
  • Yaw: 1/6 hp 120/240VDC gear motor. (not used on 2KW model)
  • Anemometer: 5V pulse output
  • Wind vane: 2Kohm, 0-5v output

Contollers:

2KW:

  • Input: 0-150 3PH VAC from turbine
  • Input: 120V, 2 amp control power.
  • Output: 0-150VDC, 15amp

5 – 10KW:

  • Input: 0- 350 3PH VAC from turbine
  • Input: 120/240, 3amp control power
  • Output: 0-320VDC, 35 amp
  • Output: 120/240VDC yaw control
  • Operator interface: touchscreen HMI

20KW:

  • Input: 0- 550 3PH VAC from turbine
  • Input: 120/240, 3amp control power
  • Output: 0-520VDC, 38 amp
  • Output: 120/240VDC yaw control
  • Operator interface: touchscreen HMI

Inverters:

  • Power One Aurora
  • Model: PVI-6000-OUTD-US-W
  • Rating: 6000 watts
  • Input: 50 – 580VDC
  • Max input: 600VDC
  • Output: 208-277 VAC, 60 Hz
  • Current: 24A, 28A,30A respectively
  • CSA/UL 1741 listed.

Last updated 9/2013
